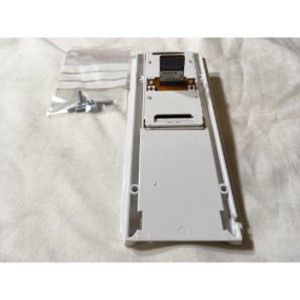

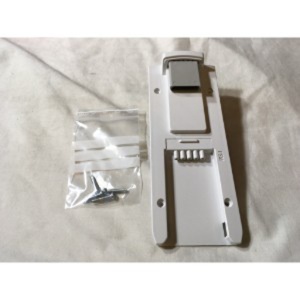

Module Rail Unit, CARESCAPE™ B450
| M1233487 | |
| Patient Monitoring | |
| GE HealthCare | |
Add to Wish List
Login To Shop
Please select date
Second Opinion Approval Needed
Enter your approval number and submit to add item(s) to cart.
Approval Number
Please enter approval number
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.
Second Opinion Approval Needed
Select your approver's name and submit to add item(s) to your cart
Approver Name
Please Select Approver Name
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.
Features
- Field Replaceable Unit (FRU) and can be easily removed and replaced
- Strong guide rails that support modules
- Screws resistant to tampering
- Can be inspected visually
Product Overview
The Module Rail Unit is a component of patient monitor displays, which is used to monitor different parameters of the patient. It can be supported by main voltage with an integrated AC/DC power supply unit or can also be battery powered. It supports two optional multi-parameter hemodynamic modules; Patient Data Module (PDM) and Patient Side Module (PSM). The module rail unit connects to the CPU carrier board. It provides interfaces for PSM and PDM. The PSM/PDM is connected to the patient monitor by aligning it with the insertion guides of the module rail unit on the back of the monitor. The unit comes with mounting screws and is mounted on the rear end of CPU unit. The connector for the rail unit is aligned exactly with the connector in the CPU board. This allows easy handling and portability of the components, which enables easy removability and replaceability of the parts from the assembly. This particular part is being used in many medical machines such as MS PDM and CARESCAPE™ B450.
