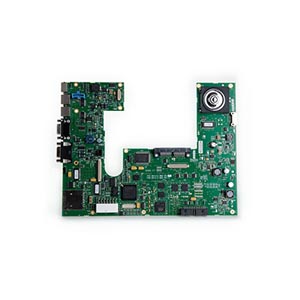

PCB ASSY MAC CPU ROHS - RETURNABLE Part
| 801212-008 | |
| 801212-007 | |
| Diagnostic ECG | |
| GE HealthCare | |
Add to Wish List
Login To Shop
Please select date
Second Opinion Approval Needed
Enter your approval number and submit to add item(s) to cart.
Approval Number
Please enter approval number
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.
Second Opinion Approval Needed
Select your approver's name and submit to add item(s) to your cart
Approver Name
Please Select Approver Name
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.
Features
- Compact design
- High quality components
- Reliable performance
- RoHS Compliant
Product Overview
The MAC CPU board is the main circuitry for the MAC-5500 electrocardiograph. The board is powered by an Atmel AT91RM9200 processor with PC Super Input/output controller and three peripheral microcontrollers. The board also have SDRAM and Flash memories and comes with other required interfaces and switches. This mainboard works only with Softwares V 10B and 9D. V 10B is used for MAC 5500 HD , V 9D is used for MAC 5500 non HD and MAC 3500. The board does not require any calibration or adjustment during installation. The External User I/O Connectors on the board are 9 pin female D-Sub for analog I/O, two 8-pin female Mini-DIN for powering external devices, a PS2 for keyboard and a VGA connector for display panel. This MAC 5500 mainboard 801212-008 replaces the 801212-007 mainboard and can be used with GE's MAC 5500 and MAC 3500 systems.
Equivalent Item(s):
Below is more information on the equivalent item(s). Items without a hyperlink are listed for reference only and are not available for purchase online.
| Equivalent Item(s) | Item Details |
|---|---|
| 801212-007 | PCB MAC CPU ROHS |
